High Speed Band Saw (50 - 5200 FT/MIN)

V-2012-F V-2812-F V-4012-F V-2012-H V-2812-H V-4012-H
High Speed Band Saw, Variable Speed, Enlarged Speed Range

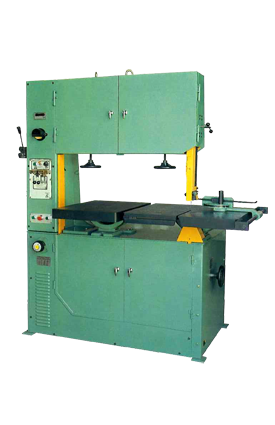

V-4012-F (FIXED TABLE)

SPECIFICATION in. (mm)
Throat Depth 39-3/8"(1000)
Work Height 12-3/8"(314)
Blade Width 1/8"thru 1"(3 thru 25)
Blade length 194-7/8"(4950)
Bandwheel Dimensions 17"×1-3/4"(430×44)
Bandwheels Number 4
Wheel Tires Easily Replacable Rubber Tires
Table Type Fixed
Main Table Size 26-3/4"×29"(679×736)
Auxiliary Tabla Size 26-3/4"×18-7/8"(679×477)
Table Tilt 45° R, 15° L
Table Workheight 40-1/8"(1019)
Blade Drive Motor 4 H.P.
Electric Controls Mag Motor Starters, 115 Volt Controls
Blade Speed 50-5200 fpm(15-1575 mpm)
Transmission Totally Enclosed
Blade Welder, Grinder, Shear 1"Capacity, Standard Equipment
Dimension：
Length 70-1/2"(1790)
Width 42-1/2"(1079)
Height 75"(1905)
Net Weight 2596 Lbs(1180 Kgs)
SANDARD FEATURES：
115V control circuit, motor overload and under volt protection, chevron blade guides 1/16" up to 1", blade tension, variable blade speed 50-5200 SFPM (15-1575 MPM), rip fence, chip blower, blade welder, grinder, shear & digital speed meter.

FEATURES:

  • Enlarged speed range: 50-5200 ft/min (15-1575m/min).
  • Infinitely variable speed.
  • Blade welder, grinder and shear are front mounted for quick, accurate blade repair and installation.
  • Maintenance-free airpump provides air to remove Chips from the point of cut.
  • Digital blade speed indicator.
  • Blade tension indicator.
  • Totally enclosed transmission.
  • TEFC 3 phase motor.
  • Rip fence is equipped.
  • Heavy duty cast iron table.
  • Magnetic, low volt controls.
  • Brush for cleaning lower drive wheel.
  • The upper wheel could be adjusted for band tensioning.
