Vertical Bandsaw with Auto-Sliding Table

Model 360D Model 400D Model 450D Model 500D Model 600D Model 700D Model 1000D
Vertical Variable Speed Bandsaw with Auto-Sliding Table

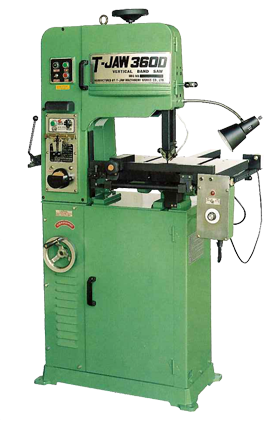

MODEL 360D

SPECIFICATION mm (in.)
Height Under Guide 165mm
6-1/2"
Throat, Band to Column 360mm
14-1/8"
Blade Speed 25-117m/min
82-384ft/min
Blade Width 3-13mm
1/8"-1/2"
Blade Length 3025mm
119-1/8"
Size of Table 565×500mm
22-1/4"×19-5/8"
Tilt, Main Table 5° R, 5° L
Motor 1HP
N0. of "T" Slots in Table None
Table Stroke 235mm
9-1/4"
Table Feed Operation Electric Powered
Machine Size 930×950×1710mm
36-5/8"×37-3/8"×67-1/4"
Net Weight 350kgs
770lbs
Ship Weight 430kgs
946lbs
Packing Size 1030×700×1900mm
40-1/2"×27-1/2"×74-3/4"
STANDARD FEATURES/ACCESSORIES:
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, rip fence,infinitely variable speed, rubber bonded saw wheels , magnetic switches and electric powered table. 　
OPTIONAL ACCESSORIES:
110 Volt Control & Lighting

STANDARD MACHINE FEATURES:

  • Infinitely variable speed.
  • The band tension is cushioned.
  • Blade welder and grinder are front mounted for quick, accurate blade repair and installation.
  • Interchangeable rubber bonded saw wheels.
  • Brush for cleaning lower drive wheel.
  • Manintenance-free airpump provides air to remove chips from the point of cut.
  • The upper wheel could be adjusted for band tensioning.
  • Hand wheel controlled speed.
  • Adjustable saw blade guides.
  • Machine light is fitted.
  • Change speeds while the machine is in operation, without stopping, without pulley changes.
  • Cast iron frame to minimize machine vibration.
  • The machine is with a device for automatic linear cutting.
  • Work table may take speedy reverse movement.
  • Moton of work table is controlled by stepless speed controller.
  • Work table is with auto stoppers.
