Vertical Variable Speed Bandsaw with Auto-Sliding Table

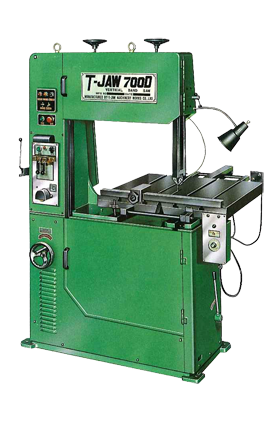

MODEL 700D

SPECIFICATION mm (in.)
Height Under Guide 325mm
12-5/8"
Throat, Band to Column 700mm
27-1/2"
Blade Speed 20-394m/min
65-1292ft/min
Blade Width 3-25mm
1/8"-1"
Blade Length 4090mm
161"
Size of Table 740×680mm
29-1/8"×26-3/4"
Tilt, Main Table 5° R, 5° L
Motor 2HP
N0. of "T" Slots in Table 4
Table Stroke 320mm
12-1/2"
Table Feed Operation Electric Powered
Machine Size 1420×1200×2040mm
55-7/8"×47-1/4"×80-3/8"
Net Weight 730kgs
1606lbs
Ship Weight 830kgs
1826lbs
Packing Size 1340×880×2090mm
52-3/4"×34-5/8"×82-1/4"
STANDARD FEATURES/ACCESSORIES:
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, rip fence, 4 "T" slots in table ,infinitely variable speed, rubber bonded saw wheels , magnetic switches , electric powered table, 110 volt control & lighting. 　
OPTIONAL ACCESSORIES:
Circle Cutting Attachment
Miter Gauge

STANDARD MACHINE FEATURES:

  • Infinitely variable speed.
  • The band tension is cushioned.
  • Blade welder and grinder are front mounted for quick, accurate blade repair and installation.
  • Interchangeable rubber bonded saw wheels.
  • Brush for cleaning lower drive wheel.
  • Manintenance-free airpump provides air to remove chips from the point of cut.
  • The upper wheel could be adjusted for band tensioning.
  • Hand wheel controlled speed.
  • Adjustable saw blade guides.
  • Machine light is fitted.
  • Change speeds while the machine is in operation, without stopping, without pulley changes.
  • Cast iron frame to minimize machine vibration.
  • The machine is with a device for automatic linear cutting.
  • Work table may take speedy reverse movement.
  • Moton of work table is controlled by stepless speed controller.
  • Work table is with auto stoppers.
