High Speed Band Saw (50 - 5200 FT/MIN)

High Speed Band Saw, Variable Speed, Enlarged Speed Range

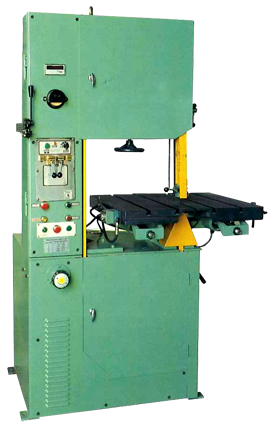

V-2012-H (HYDRAULIC TABLE)

SPECIFICATION in. (mm)
Throat Depth 20"(500)
Work Height 12"(304)
Blade Width 1/8"thru 1"(3 thru 25)
Blade length 161-3/8"(4100)
Bandwheel Dimensions 20-1/2"×1-3/4"(520×44)
Bandwheels Number 2
Wheel Tires Easily Replacable Rubber Tires
Table Type Hydraulic Powered
Main Table Size 26-3/4"×29"(679×736)
Table Tilt 15° R , 15° L
Table Workheight 40-1/2"(1028)
Blade Drive Motor 3 H.P.
Electric Controls Mag Motor Starters, 115 Volt Controls
Blade Speed 50-5200 fpm(15-1575 mpm)
Transmission Totally Enclosed
Blade Welder, Grinder, Shear 1"Capacity, Standard Equipment
Table Stroke 13"(330)
Dimension:
Length 51"(1295)
Width 44"(1117)
Height 81"(2057)
Net Weight 1870 Lbs(850 Kgs)
STANDARD FEATURES:
115V control circuit, motor overload and under volt protection, chevron blade guides 1/16" up to 1", blade tension, variable blade speed 50-5200 SFPM (15-1575 MPM), rip fence, chip blower, blade welder, grinder, shear & digital speed meter.

FEATURES:

  • Enlarged speed range: 50-5200 ft/min (15-1575m/min).
  • Infinitely variable speed.
  • Blade welder, grinder and shear are front mounted for quick, accurate blade repair and installation.
  • Maintenance-free airpump provides air to remove Chips from the point of cut.
  • Digital blade speed indicator.
  • Blade tension indicator.
  • Totally enclosed transmission.
  • TEFC 3 phase motor.
  • Rip fence is equipped.
  • Heavy duty cast iron table.
  • Magnetic, low volt controls.
  • Brush for cleaning lower drive wheel.
  • The upper wheel could be adjusted for band tensioning.
  • Motion of work table is controlled by stepless speed controller (Hydraulic powered only).
  • Work table with auto stopper (Hydraulic powered only).
  • Work table may take speedy reverse movement (Hydraulic powered only).
