Vertical Bandsaw with Stationary Table

Model 360 Model 400 Model 450 Model 500 Model 600 Model 700 Model 1000
Vertical Variable Speed Bandsaw with Stationary Table

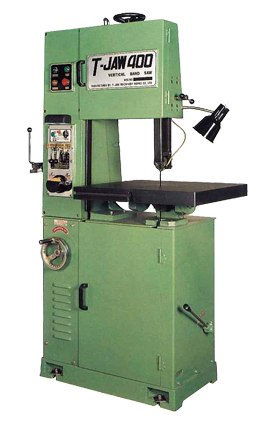

MODEL 400

SPECIFICATION mm (in.)
Height Under Guide 250mm
9-3/4"
Throat, Band to Column 400mm
15-3/4"
Blade Speed 20-376m/min
65-1233ft/min
Blade Width 3-15mm
1/8"-5/8"
Blade Length 3290mm
129-1/2"
Size of Table 600 × 560mm
23-5/8" × 22"
Tilt, Main Table 15° R, 15° L
15° F, 15° B
Motor 2HP
Machine Size 1015 × 630 × 1880mm
40" × 24-3/4" × 74"
Net Weight 550 kgs
1210 lbs
Ship Weight 640 kgs
1408 lbs
Packing Slze 1120 × 800 × 2000mm
44" × 31-1/2" × 78-3/4"
STANDARD FEATURES/ACCESSORIES:
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, infinitely variable speed, rubber bonded saw wheels, rip fence, 110 volt control & lighting.
OPTIONAL ACCESSORIES:
Circle Cutting Attachment

STANDARD MACHINE FEATURES:

  • Infinitely variable speed.
  • The band tension is cushioned.
  • Blade welder and grinder are front mounted for quick, accurate blade repair and installation.
  • Interchangeable rubber bonded saw wheels.
  • Brush for cleaning lower drive wheel.
  • Manintenance-free airpump provides air to remove chips from the point of cut.
  • The upper wheel could be adjusted for band tensioning.
  • Hand wheel controlled speed.
  • Adjustable saw blade guides.
  • Machine light is fitted.
  • Change speeds while the machine is in operation, without stopping, without pulley changes.
  • Cast iron frame to minimize machine vibration.
