Vertical Bandsaw with Stationary Table

Model 360 Model 400 Model 450 Model 500 Model 600 Model 700 Model 1000
Vertical Variable Speed Bandsaw with Stationary Table

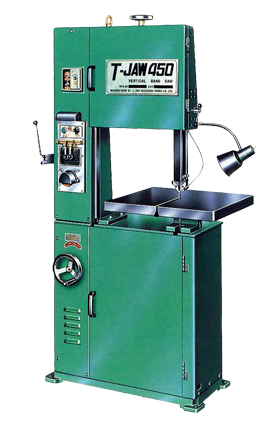

MODEL 450

SPECIFICATION mm (in.)
Height Under Guide 254mm
10"
Throat, Band to Column 450mm
18"
Blade Speed 25-117m/min
82-384ft/min
Blade Width 3-15mm
1/8"-5/8"
Blade Length 3570mm
140-1/2"
Size of Table 565×500mm
22-1/4"×19-5/8"
Tilt, Main Table 15° R, 15° L
10° F, 10° B
Motor 1HP
Machine Size 1030×560×1870mm
40-1/2"×22"×73-5/8"
Net Weight 380kgs
836lbs
Ship Weight 460kgs
1012lbs
Packing Slze 1120×700×2050mm
44"×27-1/2"×80-3/4"
STANDARD FEATURES/ACCESSORIES:
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, infinitely variable speed, rubber bonded saw wheels & magnetic switches.
OPTIONAL ACCESSORIES:
110 Volt Control Lighting

STANDARD MACHINE FEATURES:

  • Infinitely variable speed.
  • The band tension is cushioned.
  • Blade welder and grinder are front mounted for quick, accurate blade repair and installation.
  • Interchangeable rubber bonded saw wheels.
  • Brush for cleaning lower drive wheel.
  • Manintenance-free airpump provides air to remove chips from the point of cut.
  • The upper wheel could be adjusted for band tensioning.
  • Hand wheel controlled speed.
  • Adjustable saw blade guides.
  • Machine light is fitted.
  • Change speeds while the machine is in operation, without stopping, without pulley changes.
  • Cast iron frame to minimize machine vibration.
